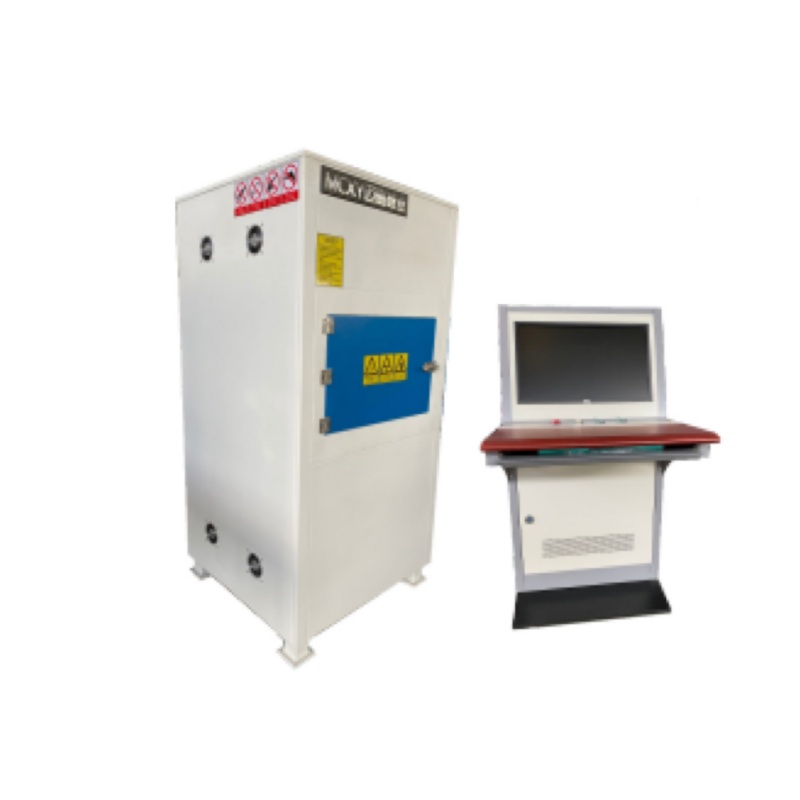

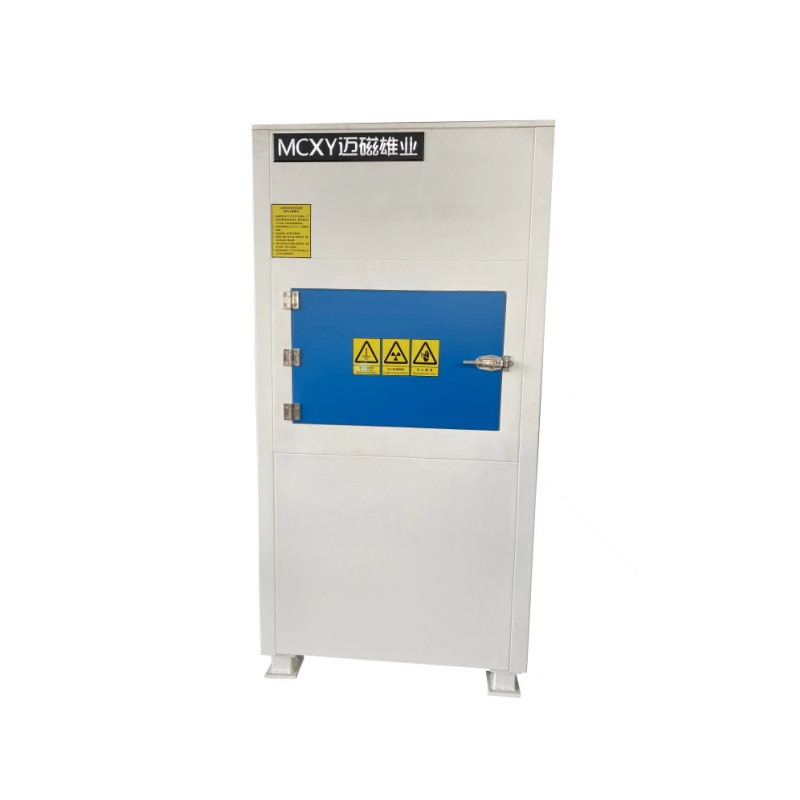

Economical X-Ray NDT System
Digital X-ray System for Small Workpiece
Digital Static imaging, Integrated ray source, large imaging area, clear images,easy operation.
Applications:
FSG-T160-P4343 X-ray system can be widely used in the field of non-destructive testing, such as detecting bubbles, cracks, impurities, and looseness in metal and non-metal castings, detecting defects in metal welding and mixed metal and non-metal components, and are extensively applied in the multi-angle testing of product samples and batch production. Metals include aluminum alloy die-casting, stainless steel, iron, etc., while non-metals include plastics, rubber, etc. Additionally, they can be used for detecting bubbles in the adhesive in the light industry field.

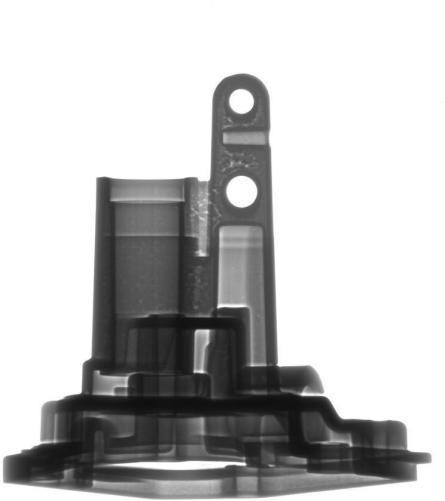

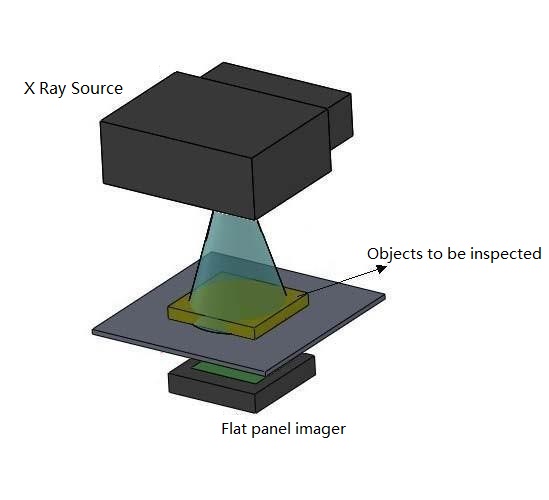

| Imaging Method: | Inspection Images: |
 |  |
Produce time:
The standard equipment manufacturing time is 30 days. For customized non-standard equipment design, manufacturing, and production, the manufacturing cycle is 2 months.
Warranty: The equipment warranty is for 1 year, while the software is provided with lifelong support.
Highlight of the system:
It features internationally advanced X-ray digital imaging technology and is a non-destructive testing equipment developed by Anhui Micxy Technology Co., Ltd. based on X-ray digital flat-panel imaging technology. Equipped with an independent operating platform outside the protective cabinet, it ensures more convenient and comfortable operation for personnel using the equipment.
The operation software of the flat-panel cabinet X-ray machine is rich in functions and easy to learn. It includes features such as fault diagnosis and repair, industrial-grade image processing and monitoring, computer image algorithms, image display, selective storage, region selection, defect identification, parameter measurement, automatic shooting, and many other functions, as well as loading customized functions for customers.
●The equipment utilizes the industry's largest flat panel X-ray imager, providing a wide imaging range, high precision, and fast speed.
●Integrated high-frequency X-ray generator with a fully enclosed design, featuring intelligent management for safety, durability, and reduced equipment wear and failure.
●Dual safety measures with a closed protective cabinet, ensuring that X-ray radiation outside the cabinet approaches natural background radiation levels.
●Separate design for the operating console with multiple mode operation interfaces, making operation simple, user-friendly, and effectively improving work efficiency.
●The uniqueUSM effect in the software makes defects in the inspected products easier to detect.
●The software incorporates the AST
M E505-15 standard chart for aluminum and magnesium castings, facilitating easy comparison during image acquisition.

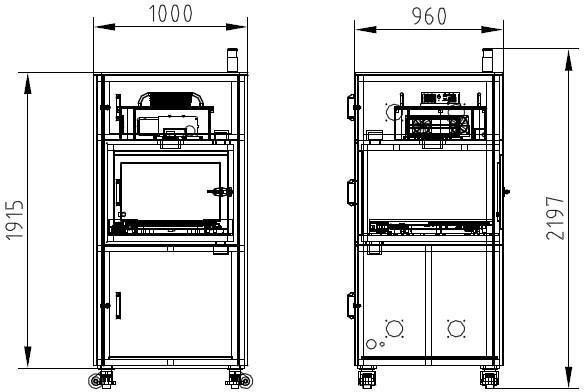

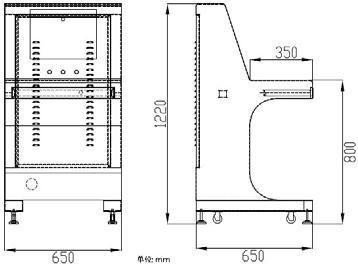

| The overall dimensions of the mainframe | Dimensions of the control console |
|
|
| Configuration & System | ||||||||
| Part name | Main Configuration | Model Specifications | Qty | |||||
| 160kV high-frequency high-voltage integrated X-ray emission source | X-ray Tube | 160KV/0.5mm focal spot | 1 | |||||
| nter high voltage power supply | 160KV | 1 | ||||||
| Dual pressure controller | 160KV | 1 | ||||||
| Internal circulating oil is cooled | 160Kv | 1 | ||||||
| External air cooling system | 160KV | 1 | ||||||
| X-ray imaging system flat-panel detector | Flat-panel detector | 430*430mm | 1 | |||||
| GbE ( gigabit Ethernet ) | 10m | 1 | ||||||
| DC power supply | 12V | 1 | ||||||
| Mainframe control console | Mainframe control console | Individual console | 1 | |||||
| Industrial display screen | 24 I nch | 1 | ||||||
| Data Cables | 5 meters / set | 3 | ||||||
| Low-voltage cables | 5 meters / set | 2 | ||||||
| X-ray protection system | Lead Case | MCXY-160KV | 1 | |||||
| Electrical control system | Circuit protection system | Delixi | 1 | |||||
| Alarm system | TPWB6-L73-ROC | 1 | ||||||
| Image processing system | Processor | INTEL I5 | 1 | |||||
| Solid state drives | 240G | 1 | ||||||
| Mechanical drives | 1T | 1 | ||||||
| MS Memory | DDR3 /8G | 1 | ||||||
| Display card | Industrial PC | 1 | ||||||
| Operating system | WINDOWS | 1 | ||||||
| X-ray digital imaging software | Imaging software | Xsafe X-ray software | 1 | |||||
The protective structure complies with GBZ117-2015 "Industrial X-ray Non-destructive Testing Radiation Health Protection Standard" and GB/T18871-2002 "Ionizing Radiation Protection and Radiation Source Safety Basic Standard."
The surface radiation of the entire machine is far below the national standard, approaching natural background radiation levels of <0.5μSv/h.
● A closed cabinet system where both the X-ray source and flat panel detector are completely enclosed.
● Complied with”GBZ117-2015 Industrial X-ray Inspection Radiation Protection Requirement ” and “GB/18871-2002 Basic Standards for Lonizing Radiation Protection and Radiation Source Safety”
● Third-party testing organizations accredited by the Technical Supervisory Department issue Radiation Leakage Protection Reports.
Pictures for reference：
|  |

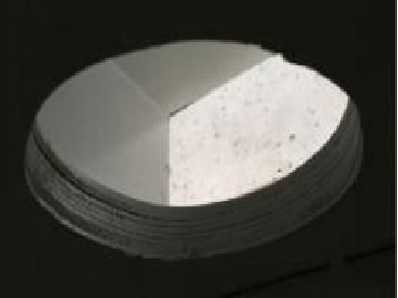

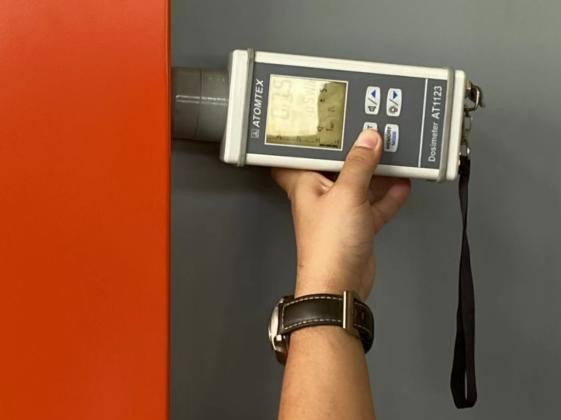

| on-site radiation leakage detection | Inter-layer of the protection cabinet |
